pacman::p_load(tidyverse, sf, httr, tmap)In-class Exercise 4
Overview
In this in-class exercise, you will gain hands-on experience on the following tasks:
performing geocoding using data downloaded from data.gov.sg
calibrating Geographically Weighted Poisson Regression
Getting Started
Geocoding using SLA API
Address geocoding, or simply geocoding is the process of taking a aspatial description of a location, such as an address or postcode, and returning geographic coordinates, frequently latitude/longitude
Lastly, the found data table will join with the initial csv data table by using a unique identifier (i.e. = POSTAL) common to both data tables. The output data table will then be saved as an csv file called found.
url <- "https://www.onemap.gov.sg/api/common/elastic/search"csv <- read_csv("data/aspatial/Generalinformationofschools.csv")
postcodes <- csv$'postal_code'found <- data.frame()
not_found <- data.frame()for(postcode in postcodes) {
query <- list('searchVal' = postcode, 'returnGeom' = 'Y', 'getAddrDetails' = 'Y', 'pageNum' = '1')
res <- GET(url, query = query)
if((content(res)$found) != 0) {
found <- rbind(found, data.frame(content(res))[4:13])
} else {
not_found = data.frame(postcode)
}
}Next, the code chunk below will be used to combine both found and not_found data.frames into a single tibble data frame called merged. At the same time, we will write merged and not_found tibble data frames into csv file.
merged <- merge(csv, found, by.x = 'postal_code', by.y = 'results.POSTAL', all = TRUE)
write.csv(merged, file = "data/aspatial/schools.csv")
write.csv(not_found, file = "data/aspatial/not_found.csv")Converting an aspatial data into a smile feature tibble data frame
Importing and tidying schools data
In this sub-section, you will import schools.csv into R environment and at the same time tidying the data by selecting only the necessary fields as well as rename some fields.
schools <- read_csv("data/aspatial/schools.csv") %>%
rename(latitude = results.LATITUDE, longitude = results.LONGITUDE) %>%
select(postal_code, school_name, latitude, longitude)Converting an aspatial data into sf tibble data frame
schools[257,"latitude"] <- 1.3887
schools[257,"longitude"] <- 103.7652Next, you will convert the aspatial data into a simple feature tibble data frame called schools_sf.
schools_sf <- st_as_sf(schools,
coords = c("longitude", "latitude"),
crs=4326) %>%
st_transform(crs = 3414)Plotting a point simple feature layer
To ensure that schools sf tibble data frame has been projected and converted correctly, you can plot the schools point data for visual inspection.
tmap_mode("view")
tm_shape(schools_sf) +
tm_dots(col="green") +
tm_view(set.zoom.limits = c(11, 14))tmap_mode("plot")Preparing
mpsz <- st_read(dsn = "data/geospatial", layer = "MP14_SUBZONE_WEB_PL") %>%
st_transform(crs = 3414)Reading layer `MP14_SUBZONE_WEB_PL' from data source
`D:\scwsu\ISSS624\In-class Ex\In-class_Ex4\data\geospatial'
using driver `ESRI Shapefile'
Simple feature collection with 323 features and 15 fields
Geometry type: MULTIPOLYGON
Dimension: XY
Bounding box: xmin: 2667.538 ymin: 15748.72 xmax: 56396.44 ymax: 50256.33
Projected CRS: SVY21mpsz$'SCHOOL_COUNT' <- lengths(
st_intersects(
mpsz, schools_sf))summary(mpsz$SCHOOL_COUNT) Min. 1st Qu. Median Mean 3rd Qu. Max.
0.000 0.000 0.000 1.084 2.000 12.000 business_sf <- st_read(dsn = "data/geospatial", layer = "Business" ) %>%
st_transform(crs = 3414)Reading layer `Business' from data source
`D:\scwsu\ISSS624\In-class Ex\In-class_Ex4\data\geospatial'
using driver `ESRI Shapefile'
Simple feature collection with 6550 features and 3 fields
Geometry type: POINT
Dimension: XY
Bounding box: xmin: 3669.148 ymin: 25408.41 xmax: 47034.83 ymax: 50148.54
Projected CRS: SVY21 / Singapore TMtmap_options(check.and.fix = TRUE)

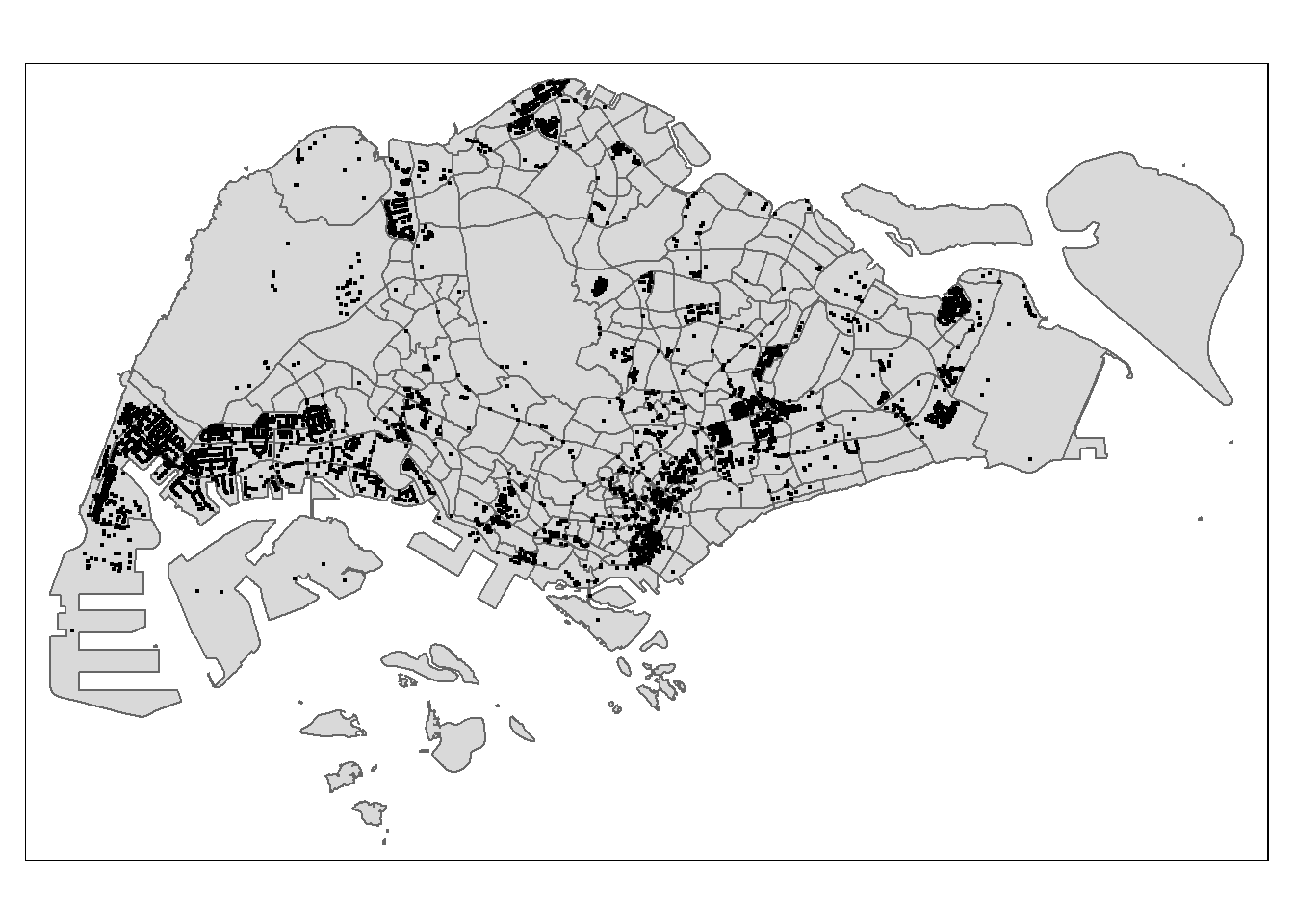

# boundary map (always plot the polygon first)
tm_shape(mpsz) +
tm_polygons() +
# business layer
tm_shape(business_sf) +
tm_dots()
Data Integration and Wrangling
#flow_data <- read_rds("data/rds/.rds")#flow_data <- flow_data %>%
#left_join(mpsz_tidy,
#by = c("DESTIN_SZ" = "SUBZONE_C"))#summary(flow_data)#flow_data$SCHOOL_COUNT <- ifelse(
#flow_data$SCHOOL_COUNT == 0,
#0.99, flow_data$SCHOOL_COUNT)pacman::p_load(tmap, sf, performance, ggpubr, tidyverse)flow_data <- read_rds("data/rds/flow_data_tidy.rds")glimpse(flow_data)Rows: 14,734
Columns: 13
$ ORIGIN_SZ <chr> "AMSZ01", "AMSZ01", "AMSZ01", "AMSZ01", "AMSZ01", "AMS…
$ DESTIN_SZ <chr> "AMSZ01", "AMSZ02", "AMSZ03", "AMSZ04", "AMSZ05", "AMS…
$ MORNING_PEAK <dbl> 1998, 8289, 8971, 2252, 6136, 2148, 1620, 1925, 1773, …
$ dist <dbl> 50.0000, 810.4491, 1360.9294, 840.4432, 1076.7916, 805…
$ ORIGIN_AGE7_12 <dbl> 310, 310, 310, 310, 310, 310, 310, 310, 310, 310, 310,…
$ ORIGIN_AGE13_24 <dbl> 710, 710, 710, 710, 710, 710, 710, 710, 710, 710, 710,…
$ ORIGIN_AGE25_64 <dbl> 2780, 2780, 2780, 2780, 2780, 2780, 2780, 2780, 2780, …
$ DESTIN_AGE7_12 <dbl> 310.00, 1140.00, 1010.00, 980.00, 810.00, 1050.00, 420…
$ DESTIN_AGE13_24 <dbl> 710.00, 2770.00, 2650.00, 2000.00, 1920.00, 2390.00, 1…
$ DESTIN_AGE25_64 <dbl> 2780.00, 15700.00, 14240.00, 11320.00, 9650.00, 12460.…
$ SCHOOL_COUNT <dbl> 0.99, 2.00, 2.00, 1.00, 3.00, 2.00, 0.99, 0.99, 3.00, …
$ RETAIL_COUNT <dbl> 1.00, 0.99, 6.00, 0.99, 0.99, 0.99, 1.00, 117.00, 0.99…
$ geometry <LINESTRING [m]> LINESTRING (29501.77 39419...., LINESTRING …Both SCHOOL_COUNT and RETAIL_COUNT will be used as attractiveness variables when calibrating origin constrained SIM.
flow_data$FlowNoIntra <- ifelse(
flow_data$ORIGIN_SZ == flow_data$DESTIN_SZ,
0, flow_data$MORNING_PEAK)
flow_data$offset <- ifelse(
flow_data$ORIGIN_SZ == flow_data$DESTIN_SZ,
0.000001, 1)inter_zonal_flow <- flow_data %>%
filter(FlowNoIntra > 0)inter_zonal_flow <- inter_zonal_flow %>%
rename(TRIPS = MORNING_PEAK,
DIST = dist)Origin (Production) constrained SIM
In this section, we will fit an origin constrained SIM by using the code chunk below.
orcSIM_Poisson <- glm(formula = TRIPS ~
ORIGIN_SZ + # this should be origin code if it's origin constrained. if destination constrained, then this should be destination code.
log(SCHOOL_COUNT) +
log(RETAIL_COUNT) +
log(DIST) - 1, # for origin/destination constrained, you already control origin/destination. Therefore, there is no concept applicable for intersect anymore. Hence, log(DIST) - 1 is used to remove the intersect.
family = poisson(link = "log"),
data = inter_zonal_flow,
na.action = na.exclude) # to exclude na values
summary(orcSIM_Poisson)
Call:
glm(formula = TRIPS ~ ORIGIN_SZ + log(SCHOOL_COUNT) + log(RETAIL_COUNT) +
log(DIST) - 1, family = poisson(link = "log"), data = inter_zonal_flow,
na.action = na.exclude)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
ORIGIN_SZAMSZ01 19.8739840 0.0047627 4172.84 <2e-16 ***
ORIGIN_SZAMSZ02 20.5902203 0.0042786 4812.33 <2e-16 ***
ORIGIN_SZAMSZ03 20.2327026 0.0045531 4443.70 <2e-16 ***
ORIGIN_SZAMSZ04 19.7744438 0.0049837 3967.79 <2e-16 ***
ORIGIN_SZAMSZ05 19.6574529 0.0056396 3485.61 <2e-16 ***
ORIGIN_SZAMSZ06 19.9659115 0.0048946 4079.16 <2e-16 ***
ORIGIN_SZAMSZ07 18.6746164 0.0096316 1938.90 <2e-16 ***
ORIGIN_SZAMSZ08 19.2701601 0.0090776 2122.82 <2e-16 ***
ORIGIN_SZAMSZ09 19.9889467 0.0052858 3781.64 <2e-16 ***
ORIGIN_SZAMSZ10 20.3422035 0.0045778 4443.62 <2e-16 ***
ORIGIN_SZAMSZ11 18.3944113 0.0129212 1423.58 <2e-16 ***
ORIGIN_SZAMSZ12 18.3484209 0.0109652 1673.33 <2e-16 ***
ORIGIN_SZBDSZ01 20.9668587 0.0043388 4832.36 <2e-16 ***
ORIGIN_SZBDSZ02 20.4059518 0.0050601 4032.75 <2e-16 ***
ORIGIN_SZBDSZ03 20.6725514 0.0045276 4565.93 <2e-16 ***
ORIGIN_SZBDSZ04 21.6703853 0.0038930 5566.44 <2e-16 ***
ORIGIN_SZBDSZ05 20.7497445 0.0046085 4502.46 <2e-16 ***
ORIGIN_SZBDSZ06 20.9119361 0.0046432 4503.77 <2e-16 ***
ORIGIN_SZBDSZ07 18.9749815 0.0097896 1938.28 <2e-16 ***
ORIGIN_SZBDSZ08 19.1933901 0.0091312 2101.95 <2e-16 ***
ORIGIN_SZBKSZ01 19.5422606 0.0064732 3018.96 <2e-16 ***
ORIGIN_SZBKSZ02 20.1748913 0.0050076 4028.89 <2e-16 ***
ORIGIN_SZBKSZ03 20.3984624 0.0047226 4319.35 <2e-16 ***
ORIGIN_SZBKSZ04 19.6182212 0.0059652 3288.76 <2e-16 ***
ORIGIN_SZBKSZ05 19.6033818 0.0063181 3102.74 <2e-16 ***
ORIGIN_SZBKSZ06 19.7145224 0.0056372 3497.20 <2e-16 ***
ORIGIN_SZBKSZ07 20.4237448 0.0041912 4873.03 <2e-16 ***
ORIGIN_SZBKSZ08 19.7992538 0.0050405 3928.02 <2e-16 ***
ORIGIN_SZBKSZ09 19.7821586 0.0055558 3560.66 <2e-16 ***
ORIGIN_SZBLSZ01 17.7977276 0.0149058 1194.01 <2e-16 ***
ORIGIN_SZBLSZ02 17.4287491 0.0192364 906.03 <2e-16 ***
ORIGIN_SZBLSZ03 16.5884288 0.0459848 360.74 <2e-16 ***
ORIGIN_SZBLSZ04 17.7851626 0.0232823 763.89 <2e-16 ***
ORIGIN_SZBMSZ01 20.0751840 0.0052887 3795.89 <2e-16 ***
ORIGIN_SZBMSZ02 18.6956140 0.0066656 2804.80 <2e-16 ***
ORIGIN_SZBMSZ03 19.3204425 0.0054755 3528.56 <2e-16 ***
ORIGIN_SZBMSZ04 19.4724220 0.0049390 3942.59 <2e-16 ***
ORIGIN_SZBMSZ05 16.9581801 0.0168804 1004.61 <2e-16 ***
ORIGIN_SZBMSZ06 16.9898638 0.0181852 934.27 <2e-16 ***
ORIGIN_SZBMSZ07 19.2868403 0.0056231 3429.91 <2e-16 ***
ORIGIN_SZBMSZ08 19.1477543 0.0055918 3424.28 <2e-16 ***
ORIGIN_SZBMSZ09 18.7564539 0.0086298 2173.46 <2e-16 ***
ORIGIN_SZBMSZ10 18.3617854 0.0089250 2057.35 <2e-16 ***
ORIGIN_SZBMSZ11 18.9167941 0.0063340 2986.54 <2e-16 ***
ORIGIN_SZBMSZ12 18.7874661 0.0093024 2019.63 <2e-16 ***
ORIGIN_SZBMSZ13 19.5654046 0.0057517 3401.70 <2e-16 ***
ORIGIN_SZBMSZ14 19.0685619 0.0063346 3010.24 <2e-16 ***
ORIGIN_SZBMSZ15 19.4403124 0.0058147 3343.30 <2e-16 ***
ORIGIN_SZBMSZ16 18.4469203 0.0092638 1991.28 <2e-16 ***
ORIGIN_SZBMSZ17 18.3430175 0.0157692 1163.22 <2e-16 ***
ORIGIN_SZBPSZ01 20.1806714 0.0053660 3760.81 <2e-16 ***
ORIGIN_SZBPSZ02 19.8116707 0.0061485 3222.19 <2e-16 ***
ORIGIN_SZBPSZ03 19.8467602 0.0059769 3320.57 <2e-16 ***
ORIGIN_SZBPSZ04 20.4613200 0.0048398 4227.72 <2e-16 ***
ORIGIN_SZBPSZ05 20.5379711 0.0043769 4692.39 <2e-16 ***
ORIGIN_SZBPSZ06 18.8948034 0.0093668 2017.21 <2e-16 ***
ORIGIN_SZBPSZ07 19.4104568 0.0087961 2206.70 <2e-16 ***
ORIGIN_SZBSSZ01 20.0139503 0.0056561 3538.45 <2e-16 ***
ORIGIN_SZBSSZ02 20.2543885 0.0047198 4291.38 <2e-16 ***
ORIGIN_SZBSSZ03 19.5428803 0.0052713 3707.41 <2e-16 ***
ORIGIN_SZBTSZ01 20.0198045 0.0058541 3419.77 <2e-16 ***
ORIGIN_SZBTSZ02 19.3618525 0.0081472 2376.51 <2e-16 ***
ORIGIN_SZBTSZ03 19.5883853 0.0068935 2841.59 <2e-16 ***
ORIGIN_SZBTSZ04 18.7720238 0.0103909 1806.58 <2e-16 ***
ORIGIN_SZBTSZ05 18.8069026 0.0120628 1559.08 <2e-16 ***
ORIGIN_SZBTSZ06 18.7068633 0.0094575 1978.00 <2e-16 ***
ORIGIN_SZBTSZ07 17.6292257 0.0141551 1245.43 <2e-16 ***
ORIGIN_SZBTSZ08 18.6989374 0.0109610 1705.94 <2e-16 ***
ORIGIN_SZCBSZ01 18.2189868 0.0548317 332.27 <2e-16 ***
ORIGIN_SZCCSZ01 18.9734563 0.0139450 1360.59 <2e-16 ***
ORIGIN_SZCHSZ01 19.5955119 0.0121035 1619.00 <2e-16 ***
ORIGIN_SZCHSZ02 19.3320960 0.0081620 2368.55 <2e-16 ***
ORIGIN_SZCHSZ03 21.2164518 0.0063552 3338.43 <2e-16 ***
ORIGIN_SZCKSZ01 20.1046845 0.0049333 4075.29 <2e-16 ***
ORIGIN_SZCKSZ02 20.5371946 0.0050256 4086.53 <2e-16 ***
ORIGIN_SZCKSZ03 20.7210560 0.0042184 4912.07 <2e-16 ***
ORIGIN_SZCKSZ04 21.4013886 0.0042524 5032.80 <2e-16 ***
ORIGIN_SZCKSZ05 20.9413146 0.0049434 4236.18 <2e-16 ***
ORIGIN_SZCKSZ06 20.2557727 0.0071832 2819.88 <2e-16 ***
ORIGIN_SZCLSZ01 19.3383703 0.0076634 2523.46 <2e-16 ***
ORIGIN_SZCLSZ02 18.5226956 0.0135522 1366.77 <2e-16 ***
ORIGIN_SZCLSZ03 19.0225512 0.0080145 2373.51 <2e-16 ***
ORIGIN_SZCLSZ04 20.7981505 0.0042400 4905.22 <2e-16 ***
ORIGIN_SZCLSZ05 18.3015625 0.0146815 1246.58 <2e-16 ***
ORIGIN_SZCLSZ06 20.8207386 0.0039567 5262.09 <2e-16 ***
ORIGIN_SZCLSZ07 19.6728958 0.0054199 3629.76 <2e-16 ***
ORIGIN_SZCLSZ08 20.0851929 0.0056956 3526.43 <2e-16 ***
ORIGIN_SZCLSZ09 18.5749589 0.0165415 1122.93 <2e-16 ***
ORIGIN_SZDTSZ02 15.8276209 0.0833992 189.78 <2e-16 ***
ORIGIN_SZDTSZ03 16.2512838 0.0737972 220.22 <2e-16 ***
ORIGIN_SZDTSZ13 16.7744385 0.0312450 536.87 <2e-16 ***
ORIGIN_SZGLSZ01 18.2368248 0.0096104 1897.62 <2e-16 ***
ORIGIN_SZGLSZ02 19.8705255 0.0049014 4054.06 <2e-16 ***
ORIGIN_SZGLSZ03 19.8249435 0.0053109 3732.85 <2e-16 ***
ORIGIN_SZGLSZ04 20.7800335 0.0041261 5036.20 <2e-16 ***
ORIGIN_SZGLSZ05 20.6040494 0.0043049 4786.23 <2e-16 ***
ORIGIN_SZHGSZ01 20.0273475 0.0044824 4468.04 <2e-16 ***
ORIGIN_SZHGSZ02 20.2480656 0.0044575 4542.47 <2e-16 ***
ORIGIN_SZHGSZ03 20.0756442 0.0049003 4096.81 <2e-16 ***
ORIGIN_SZHGSZ04 20.7577748 0.0040465 5129.84 <2e-16 ***
ORIGIN_SZHGSZ05 20.9779992 0.0040123 5228.42 <2e-16 ***
ORIGIN_SZHGSZ06 19.7403058 0.0054229 3640.20 <2e-16 ***
ORIGIN_SZHGSZ07 20.1896268 0.0046051 4384.22 <2e-16 ***
ORIGIN_SZHGSZ08 19.8646492 0.0052403 3790.72 <2e-16 ***
ORIGIN_SZHGSZ09 18.3647736 0.0069196 2654.04 <2e-16 ***
ORIGIN_SZHGSZ10 16.8720475 0.0421046 400.72 <2e-16 ***
ORIGIN_SZJESZ01 20.2673794 0.0046723 4337.79 <2e-16 ***
ORIGIN_SZJESZ02 20.0595982 0.0046503 4313.61 <2e-16 ***
ORIGIN_SZJESZ03 19.9128778 0.0049848 3994.75 <2e-16 ***
ORIGIN_SZJESZ04 18.5053667 0.0099227 1864.94 <2e-16 ***
ORIGIN_SZJESZ05 17.8172930 0.0138840 1283.29 <2e-16 ***
ORIGIN_SZJESZ06 20.0124157 0.0045009 4446.36 <2e-16 ***
ORIGIN_SZJESZ07 18.1821423 0.0117267 1550.49 <2e-16 ***
ORIGIN_SZJESZ08 18.8713046 0.0116456 1620.46 <2e-16 ***
ORIGIN_SZJESZ09 20.5535527 0.0048456 4241.72 <2e-16 ***
ORIGIN_SZJESZ10 18.4922322 0.0191243 966.95 <2e-16 ***
ORIGIN_SZJESZ11 18.2891211 0.0197114 927.85 <2e-16 ***
ORIGIN_SZJWSZ01 20.4912737 0.0063102 3247.35 <2e-16 ***
ORIGIN_SZJWSZ02 20.8236694 0.0042249 4928.82 <2e-16 ***
ORIGIN_SZJWSZ03 21.2587613 0.0039733 5350.40 <2e-16 ***
ORIGIN_SZJWSZ04 20.3816464 0.0046199 4411.67 <2e-16 ***
ORIGIN_SZJWSZ05 18.0607448 0.0128857 1401.61 <2e-16 ***
ORIGIN_SZJWSZ06 18.7015202 0.0107614 1737.83 <2e-16 ***
ORIGIN_SZJWSZ07 17.3991822 0.0277096 627.91 <2e-16 ***
ORIGIN_SZJWSZ08 21.8044465 0.0037356 5836.95 <2e-16 ***
ORIGIN_SZJWSZ09 21.5414930 0.0036033 5978.19 <2e-16 ***
ORIGIN_SZKLSZ01 20.0307712 0.0047868 4184.59 <2e-16 ***
ORIGIN_SZKLSZ02 19.0634769 0.0062318 3059.05 <2e-16 ***
ORIGIN_SZKLSZ03 19.2685700 0.0057172 3370.25 <2e-16 ***
ORIGIN_SZKLSZ04 17.7085067 0.0119809 1478.06 <2e-16 ***
ORIGIN_SZKLSZ05 18.6384471 0.0107596 1732.26 <2e-16 ***
ORIGIN_SZKLSZ06 13.7280296 0.1857160 73.92 <2e-16 ***
ORIGIN_SZKLSZ07 18.6425146 0.0084952 2194.47 <2e-16 ***
ORIGIN_SZKLSZ08 18.0928506 0.0101567 1781.37 <2e-16 ***
ORIGIN_SZLKSZ01 17.8907138 0.0397083 450.55 <2e-16 ***
ORIGIN_SZMDSZ01 18.7605188 0.0285455 657.22 <2e-16 ***
ORIGIN_SZMDSZ02 19.1533927 0.0102815 1862.90 <2e-16 ***
ORIGIN_SZMDSZ03 17.8404982 0.0169690 1051.36 <2e-16 ***
ORIGIN_SZMPSZ01 19.0765941 0.0083937 2272.74 <2e-16 ***
ORIGIN_SZMPSZ02 19.2162527 0.0068331 2812.24 <2e-16 ***
ORIGIN_SZMPSZ03 19.9965344 0.0054569 3664.44 <2e-16 ***
ORIGIN_SZMUSZ02 15.9130765 0.1037472 153.38 <2e-16 ***
ORIGIN_SZNTSZ01 17.0840999 0.0352513 484.64 <2e-16 ***
ORIGIN_SZNTSZ02 16.5792122 0.0233186 710.99 <2e-16 ***
ORIGIN_SZNTSZ03 18.9506415 0.0075957 2494.93 <2e-16 ***
ORIGIN_SZNTSZ05 15.8770261 0.0495825 320.21 <2e-16 ***
ORIGIN_SZNTSZ06 15.3997415 0.0557029 276.46 <2e-16 ***
ORIGIN_SZNVSZ01 20.2241694 0.0043487 4650.65 <2e-16 ***
ORIGIN_SZNVSZ02 19.1897826 0.0065383 2934.97 <2e-16 ***
ORIGIN_SZNVSZ03 18.8854268 0.0080459 2347.22 <2e-16 ***
ORIGIN_SZNVSZ04 18.8940191 0.0090985 2076.61 <2e-16 ***
ORIGIN_SZNVSZ05 17.6278585 0.0168107 1048.61 <2e-16 ***
ORIGIN_SZPGSZ01 19.4825220 0.0122960 1584.46 <2e-16 ***
ORIGIN_SZPGSZ02 19.4726761 0.0073116 2663.25 <2e-16 ***
ORIGIN_SZPGSZ03 20.5515713 0.0045631 4503.86 <2e-16 ***
ORIGIN_SZPGSZ04 21.0527131 0.0041500 5072.89 <2e-16 ***
ORIGIN_SZPGSZ05 20.1436604 0.0057267 3517.48 <2e-16 ***
ORIGIN_SZPLSZ01 19.1832002 0.0120006 1598.53 <2e-16 ***
ORIGIN_SZPLSZ02 18.8752206 0.0149740 1260.53 <2e-16 ***
ORIGIN_SZPLSZ03 18.1000818 0.0371769 486.86 <2e-16 ***
ORIGIN_SZPLSZ04 17.1730559 0.0370280 463.79 <2e-16 ***
ORIGIN_SZPLSZ05 17.9084439 0.0225031 795.82 <2e-16 ***
ORIGIN_SZPNSZ01 21.0804425 0.0044829 4702.41 <2e-16 ***
ORIGIN_SZPNSZ02 19.8822123 0.0111507 1783.05 <2e-16 ***
ORIGIN_SZPNSZ03 17.9293289 0.0193571 926.24 <2e-16 ***
ORIGIN_SZPNSZ04 17.1039594 0.0334954 510.64 <2e-16 ***
ORIGIN_SZPNSZ05 18.2543864 0.0275554 662.46 <2e-16 ***
ORIGIN_SZPRSZ01 19.8777935 0.0117586 1690.49 <2e-16 ***
ORIGIN_SZPRSZ02 21.0751780 0.0044832 4700.88 <2e-16 ***
ORIGIN_SZPRSZ03 20.6717019 0.0045577 4535.55 <2e-16 ***
ORIGIN_SZPRSZ04 19.6365125 0.0074923 2620.90 <2e-16 ***
ORIGIN_SZPRSZ05 21.3132151 0.0042119 5060.24 <2e-16 ***
ORIGIN_SZPRSZ06 18.9314574 0.0117278 1614.24 <2e-16 ***
ORIGIN_SZPRSZ07 17.2822918 0.0162430 1063.98 <2e-16 ***
ORIGIN_SZPRSZ08 19.9267642 0.0062298 3198.62 <2e-16 ***
ORIGIN_SZQTSZ01 19.7357175 0.0066359 2974.08 <2e-16 ***
ORIGIN_SZQTSZ02 19.2082141 0.0061402 3128.26 <2e-16 ***
ORIGIN_SZQTSZ03 19.7771883 0.0056220 3517.83 <2e-16 ***
ORIGIN_SZQTSZ04 18.7114421 0.0072842 2568.76 <2e-16 ***
ORIGIN_SZQTSZ05 19.3049324 0.0062401 3093.69 <2e-16 ***
ORIGIN_SZQTSZ06 19.2643228 0.0065590 2937.09 <2e-16 ***
ORIGIN_SZQTSZ07 18.5697347 0.0095373 1947.06 <2e-16 ***
ORIGIN_SZQTSZ08 19.6147001 0.0061330 3198.21 <2e-16 ***
ORIGIN_SZQTSZ09 19.2550793 0.0069947 2752.82 <2e-16 ***
ORIGIN_SZQTSZ10 19.5801866 0.0064513 3035.07 <2e-16 ***
ORIGIN_SZQTSZ11 17.7398366 0.0143648 1234.95 <2e-16 ***
ORIGIN_SZQTSZ12 17.2420354 0.0186736 923.34 <2e-16 ***
ORIGIN_SZQTSZ13 19.3857418 0.0078878 2457.69 <2e-16 ***
ORIGIN_SZQTSZ14 18.1300753 0.0122096 1484.90 <2e-16 ***
ORIGIN_SZQTSZ15 19.4222283 0.0120871 1606.86 <2e-16 ***
ORIGIN_SZRCSZ01 18.1549045 0.0125108 1451.13 <2e-16 ***
ORIGIN_SZRCSZ06 18.8836400 0.0082161 2298.38 <2e-16 ***
ORIGIN_SZRVSZ01 16.7864438 0.0323796 518.43 <2e-16 ***
ORIGIN_SZRVSZ02 16.4203244 0.0276836 593.14 <2e-16 ***
ORIGIN_SZRVSZ03 16.6453738 0.0244992 679.42 <2e-16 ***
ORIGIN_SZRVSZ04 15.9559213 0.0556344 286.80 <2e-16 ***
ORIGIN_SZRVSZ05 17.0476331 0.0164122 1038.71 <2e-16 ***
ORIGIN_SZSBSZ01 20.0417968 0.0062488 3207.29 <2e-16 ***
ORIGIN_SZSBSZ02 19.1869565 0.0081051 2367.26 <2e-16 ***
ORIGIN_SZSBSZ03 20.5769861 0.0045108 4561.70 <2e-16 ***
ORIGIN_SZSBSZ04 20.5154199 0.0050548 4058.57 <2e-16 ***
ORIGIN_SZSBSZ05 19.6250669 0.0065562 2993.35 <2e-16 ***
ORIGIN_SZSBSZ06 18.8419757 0.0171135 1101.00 <2e-16 ***
ORIGIN_SZSBSZ07 19.4897259 0.0124528 1565.09 <2e-16 ***
ORIGIN_SZSBSZ08 18.7027917 0.0140545 1330.73 <2e-16 ***
ORIGIN_SZSBSZ09 18.8893480 0.0088571 2132.67 <2e-16 ***
ORIGIN_SZSESZ02 20.8962192 0.0041665 5015.34 <2e-16 ***
ORIGIN_SZSESZ03 20.9452771 0.0039737 5270.94 <2e-16 ***
ORIGIN_SZSESZ04 20.6576142 0.0046364 4455.55 <2e-16 ***
ORIGIN_SZSESZ05 19.5170732 0.0058912 3312.92 <2e-16 ***
ORIGIN_SZSESZ06 20.7595824 0.0045747 4537.89 <2e-16 ***
ORIGIN_SZSESZ07 17.6888256 0.0195787 903.47 <2e-16 ***
ORIGIN_SZSGSZ01 19.1359250 0.0085781 2230.79 <2e-16 ***
ORIGIN_SZSGSZ02 18.5614369 0.0102037 1819.10 <2e-16 ***
ORIGIN_SZSGSZ03 19.9933176 0.0050434 3964.23 <2e-16 ***
ORIGIN_SZSGSZ04 20.2426871 0.0047211 4287.71 <2e-16 ***
ORIGIN_SZSGSZ05 18.0114965 0.0107743 1671.70 <2e-16 ***
ORIGIN_SZSGSZ06 20.2593194 0.0044538 4548.76 <2e-16 ***
ORIGIN_SZSGSZ07 19.0763664 0.0062968 3029.54 <2e-16 ***
ORIGIN_SZSKSZ01 19.9222451 0.0085136 2340.04 <2e-16 ***
ORIGIN_SZSKSZ02 20.8633383 0.0055248 3776.33 <2e-16 ***
ORIGIN_SZSKSZ03 19.6528148 0.0080534 2440.33 <2e-16 ***
ORIGIN_SZSKSZ04 18.0754470 0.0275771 655.45 <2e-16 ***
ORIGIN_SZSKSZ05 19.1192521 0.0155579 1228.91 <2e-16 ***
ORIGIN_SZSLSZ01 17.1501034 0.0329384 520.67 <2e-16 ***
ORIGIN_SZSLSZ04 19.5949774 0.0076753 2552.98 <2e-16 ***
ORIGIN_SZSRSZ01 16.9761403 0.0162020 1047.78 <2e-16 ***
ORIGIN_SZTHSZ01 17.9695687 0.0488559 367.81 <2e-16 ***
ORIGIN_SZTHSZ03 18.5427522 0.0223617 829.22 <2e-16 ***
ORIGIN_SZTHSZ04 17.4760374 0.0286247 610.52 <2e-16 ***
ORIGIN_SZTHSZ06 17.8401186 0.0183322 973.16 <2e-16 ***
ORIGIN_SZTMSZ01 20.3406361 0.0056607 3593.33 <2e-16 ***
ORIGIN_SZTMSZ02 22.0307026 0.0037386 5892.85 <2e-16 ***
ORIGIN_SZTMSZ03 21.3451920 0.0040606 5256.65 <2e-16 ***
ORIGIN_SZTMSZ04 20.6611593 0.0049896 4140.87 <2e-16 ***
ORIGIN_SZTMSZ05 19.3323133 0.0112868 1712.82 <2e-16 ***
ORIGIN_SZTNSZ01 17.9513571 0.0128266 1399.54 <2e-16 ***
ORIGIN_SZTNSZ02 18.0267387 0.0098372 1832.51 <2e-16 ***
ORIGIN_SZTNSZ03 17.7253700 0.0134668 1316.23 <2e-16 ***
ORIGIN_SZTNSZ04 19.4474075 0.0073760 2636.59 <2e-16 ***
ORIGIN_SZTPSZ01 19.1078631 0.0065635 2911.25 <2e-16 ***
ORIGIN_SZTPSZ02 20.2837634 0.0041411 4898.18 <2e-16 ***
ORIGIN_SZTPSZ03 19.1838238 0.0059552 3221.37 <2e-16 ***
ORIGIN_SZTPSZ04 19.1805388 0.0054778 3501.53 <2e-16 ***
ORIGIN_SZTPSZ05 19.3718076 0.0058610 3305.18 <2e-16 ***
ORIGIN_SZTPSZ06 19.6605723 0.0054968 3576.70 <2e-16 ***
ORIGIN_SZTPSZ07 19.4499807 0.0060491 3215.36 <2e-16 ***
ORIGIN_SZTPSZ08 18.7996538 0.0095757 1963.28 <2e-16 ***
ORIGIN_SZTPSZ09 19.0025110 0.0067068 2833.31 <2e-16 ***
ORIGIN_SZTPSZ10 18.8899657 0.0076094 2482.46 <2e-16 ***
ORIGIN_SZTPSZ11 19.6277780 0.0053983 3635.93 <2e-16 ***
ORIGIN_SZTPSZ12 19.1471104 0.0065742 2912.45 <2e-16 ***
ORIGIN_SZTSSZ01 17.4901113 0.0478954 365.17 <2e-16 ***
ORIGIN_SZTSSZ02 20.4997466 0.0081850 2504.55 <2e-16 ***
ORIGIN_SZTSSZ03 20.1076553 0.0084728 2373.19 <2e-16 ***
ORIGIN_SZTSSZ04 20.0646610 0.0089008 2254.26 <2e-16 ***
ORIGIN_SZTSSZ05 19.3962067 0.0151392 1281.19 <2e-16 ***
ORIGIN_SZTSSZ06 20.9235857 0.0178278 1173.65 <2e-16 ***
ORIGIN_SZWCSZ01 20.8411600 0.0086519 2408.86 <2e-16 ***
ORIGIN_SZWCSZ02 17.7355404 0.0328889 539.26 <2e-16 ***
ORIGIN_SZWCSZ03 14.9380886 0.1240699 120.40 <2e-16 ***
ORIGIN_SZWDSZ01 21.1969012 0.0037830 5603.23 <2e-16 ***
ORIGIN_SZWDSZ02 20.5930001 0.0044572 4620.13 <2e-16 ***
ORIGIN_SZWDSZ03 21.2521867 0.0041672 5099.85 <2e-16 ***
ORIGIN_SZWDSZ04 21.0702687 0.0048648 4331.13 <2e-16 ***
ORIGIN_SZWDSZ05 20.4008998 0.0051801 3938.35 <2e-16 ***
ORIGIN_SZWDSZ06 20.6669176 0.0049280 4193.78 <2e-16 ***
ORIGIN_SZWDSZ07 19.0500370 0.0082729 2302.71 <2e-16 ***
ORIGIN_SZWDSZ08 19.0816252 0.0080667 2365.49 <2e-16 ***
ORIGIN_SZWDSZ09 21.4182096 0.0040391 5302.73 <2e-16 ***
ORIGIN_SZYSSZ01 19.5355157 0.0057540 3395.14 <2e-16 ***
ORIGIN_SZYSSZ02 20.8737972 0.0048278 4323.64 <2e-16 ***
ORIGIN_SZYSSZ03 21.6614437 0.0040011 5413.81 <2e-16 ***
ORIGIN_SZYSSZ04 20.9305289 0.0043595 4801.10 <2e-16 ***
ORIGIN_SZYSSZ05 20.1727678 0.0058466 3450.34 <2e-16 ***
ORIGIN_SZYSSZ06 19.1481507 0.0116724 1640.47 <2e-16 ***
ORIGIN_SZYSSZ07 18.7919074 0.0141636 1326.78 <2e-16 ***
ORIGIN_SZYSSZ08 19.9733515 0.0061229 3262.07 <2e-16 ***
ORIGIN_SZYSSZ09 20.9366181 0.0040347 5189.15 <2e-16 ***
log(SCHOOL_COUNT) 0.4755516 0.0004701 1011.55 <2e-16 ***
log(RETAIL_COUNT) 0.1796905 0.0001856 968.12 <2e-16 ***
log(DIST) -1.6929522 0.0004093 -4136.01 <2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for poisson family taken to be 1)
Null deviance: 189463537 on 14471 degrees of freedom
Residual deviance: 15526121 on 14189 degrees of freedom
AIC: 15615824
Number of Fisher Scoring iterations: 6
Note
log(DIST) value must be negative due to inverse relationship. The further the distance, the less people are willing to travel.
log(SCHOOL_COUNT) - attractiveness
log(RETAIL_COUNT) - attractiveness
p-value should be < 0.05. That will allow us the accept the variables as part of the conceptual model. If p-value is > 0.05, that particular variable is not statistically significant and you need to re-calibrate your model.
Goodness-of-Fit
glm function does not provide R squared and we need to calculate R squared.
CalcRSquared <- function(observed, estimated) {
r <- cor(observed, estimated) #correlation can be positive or negative
R2 <- r^2
R2
}We can examine how the constraints hold for destinations this time.
CalcRSquared(orcSIM_Poisson$data$TRIPS, orcSIM_Poisson$fitted.values)[1] 0.4362208performance_rmse(orcSIM_Poisson,
normalized = FALSE) # TRUE will standardize the value where mean = 0 and stdev = 1. FALSE will produce actual value.[1] 2613.236Doubly Constrained
In this section, we will fit a doubly constrained SIM by using the code chunk below.
dbcSIM_Poisson <- glm(formula = TRIPS ~
ORIGIN_SZ +
DESTIN_SZ +
log(DIST),
family = poisson(link = "log"),
data = inter_zonal_flow,
na.action = na.exclude) # to exclude na values
summary(dbcSIM_Poisson)
Call:
glm(formula = TRIPS ~ ORIGIN_SZ + DESTIN_SZ + log(DIST), family = poisson(link = "log"),
data = inter_zonal_flow, na.action = na.exclude)
Coefficients:
Estimate Std. Error z value Pr(>|z|)
(Intercept) 21.8312374 0.0059160 3690.190 < 2e-16 ***
ORIGIN_SZAMSZ02 0.5263502 0.0048031 109.585 < 2e-16 ***
ORIGIN_SZAMSZ03 0.3139982 0.0049254 63.751 < 2e-16 ***
ORIGIN_SZAMSZ04 -0.2146257 0.0053639 -40.013 < 2e-16 ***
ORIGIN_SZAMSZ05 -0.1890446 0.0060386 -31.306 < 2e-16 ***
ORIGIN_SZAMSZ06 0.1539201 0.0054401 28.294 < 2e-16 ***
ORIGIN_SZAMSZ07 -0.9826565 0.0098676 -99.584 < 2e-16 ***
ORIGIN_SZAMSZ08 -0.4488417 0.0093070 -48.226 < 2e-16 ***
ORIGIN_SZAMSZ09 0.0713474 0.0057402 12.429 < 2e-16 ***
ORIGIN_SZAMSZ10 0.4313742 0.0050370 85.641 < 2e-16 ***
ORIGIN_SZAMSZ11 -1.4712226 0.0131178 -112.154 < 2e-16 ***
ORIGIN_SZAMSZ12 -1.7250733 0.0111603 -154.573 < 2e-16 ***
ORIGIN_SZBDSZ01 0.8810576 0.0048168 182.914 < 2e-16 ***
ORIGIN_SZBDSZ02 0.1100240 0.0055529 19.814 < 2e-16 ***
ORIGIN_SZBDSZ03 0.3606166 0.0050672 71.167 < 2e-16 ***
ORIGIN_SZBDSZ04 1.4624347 0.0044212 330.781 < 2e-16 ***
ORIGIN_SZBDSZ05 0.6207557 0.0050843 122.092 < 2e-16 ***
ORIGIN_SZBDSZ06 0.6712973 0.0051953 129.214 < 2e-16 ***
ORIGIN_SZBDSZ07 -1.2338669 0.0100775 -122.437 < 2e-16 ***
ORIGIN_SZBDSZ08 -1.0444562 0.0094555 -110.460 < 2e-16 ***
ORIGIN_SZBKSZ01 -0.2838426 0.0071354 -39.780 < 2e-16 ***
ORIGIN_SZBKSZ02 0.5550522 0.0059014 94.054 < 2e-16 ***
ORIGIN_SZBKSZ03 0.7396640 0.0056796 130.231 < 2e-16 ***
ORIGIN_SZBKSZ04 -0.2242451 0.0067482 -33.230 < 2e-16 ***
ORIGIN_SZBKSZ05 -0.2371614 0.0069386 -34.180 < 2e-16 ***
ORIGIN_SZBKSZ06 -0.1413812 0.0065035 -21.739 < 2e-16 ***
ORIGIN_SZBKSZ07 0.7089989 0.0051843 136.758 < 2e-16 ***
ORIGIN_SZBKSZ08 -0.0907065 0.0059157 -15.333 < 2e-16 ***
ORIGIN_SZBKSZ09 -0.1775146 0.0063302 -28.042 < 2e-16 ***
ORIGIN_SZBLSZ01 -2.3684539 0.0154280 -153.516 < 2e-16 ***
ORIGIN_SZBLSZ02 -2.8078475 0.0197839 -141.926 < 2e-16 ***
ORIGIN_SZBLSZ03 -3.3122763 0.0466091 -71.065 < 2e-16 ***
ORIGIN_SZBLSZ04 -2.6770542 0.0241793 -110.717 < 2e-16 ***
ORIGIN_SZBMSZ01 0.0618035 0.0059400 10.405 < 2e-16 ***
ORIGIN_SZBMSZ02 -1.3535767 0.0073741 -183.557 < 2e-16 ***
ORIGIN_SZBMSZ03 -0.7569095 0.0063187 -119.790 < 2e-16 ***
ORIGIN_SZBMSZ04 -0.2949304 0.0059603 -49.483 < 2e-16 ***
ORIGIN_SZBMSZ05 -2.6131992 0.0172376 -151.599 < 2e-16 ***
ORIGIN_SZBMSZ06 -3.0315024 0.0185502 -163.422 < 2e-16 ***
ORIGIN_SZBMSZ07 -0.6962524 0.0064068 -108.674 < 2e-16 ***
ORIGIN_SZBMSZ08 -0.9310730 0.0064541 -144.261 < 2e-16 ***
ORIGIN_SZBMSZ09 -1.2911253 0.0092047 -140.268 < 2e-16 ***
ORIGIN_SZBMSZ10 -1.6687004 0.0095708 -174.353 < 2e-16 ***
ORIGIN_SZBMSZ11 -1.1152794 0.0072027 -154.841 < 2e-16 ***
ORIGIN_SZBMSZ12 -1.5323954 0.0099932 -153.344 < 2e-16 ***
ORIGIN_SZBMSZ13 -0.6267376 0.0065863 -95.158 < 2e-16 ***
ORIGIN_SZBMSZ14 -1.0475467 0.0072472 -144.544 < 2e-16 ***
ORIGIN_SZBMSZ15 -0.5049444 0.0067390 -74.929 < 2e-16 ***
ORIGIN_SZBMSZ16 -1.5282897 0.0099545 -153.527 < 2e-16 ***
ORIGIN_SZBMSZ17 -1.5722349 0.0161533 -97.332 < 2e-16 ***
ORIGIN_SZBPSZ01 0.5814175 0.0062904 92.429 < 2e-16 ***
ORIGIN_SZBPSZ02 0.0875442 0.0072190 12.127 < 2e-16 ***
ORIGIN_SZBPSZ03 0.3358227 0.0070460 47.662 < 2e-16 ***
ORIGIN_SZBPSZ04 0.6507586 0.0057726 112.733 < 2e-16 ***
ORIGIN_SZBPSZ05 0.9502124 0.0052971 179.384 < 2e-16 ***
ORIGIN_SZBPSZ06 -1.0480314 0.0098191 -106.734 < 2e-16 ***
ORIGIN_SZBPSZ07 -0.5467931 0.0091676 -59.644 < 2e-16 ***
ORIGIN_SZBSSZ01 0.2998334 0.0059193 50.654 < 2e-16 ***
ORIGIN_SZBSSZ02 0.2841036 0.0050863 55.856 < 2e-16 ***
ORIGIN_SZBSSZ03 -0.2331505 0.0056565 -41.218 < 2e-16 ***
ORIGIN_SZBTSZ01 0.0987284 0.0063715 15.495 < 2e-16 ***
ORIGIN_SZBTSZ02 -0.6261229 0.0084604 -74.006 < 2e-16 ***
ORIGIN_SZBTSZ03 -0.4326963 0.0073452 -58.909 < 2e-16 ***
ORIGIN_SZBTSZ04 -1.4998668 0.0110013 -136.336 < 2e-16 ***
ORIGIN_SZBTSZ05 -0.9564768 0.0122202 -78.270 < 2e-16 ***
ORIGIN_SZBTSZ06 -1.2853131 0.0099328 -129.401 < 2e-16 ***
ORIGIN_SZBTSZ07 -2.3870991 0.0144589 -165.096 < 2e-16 ***
ORIGIN_SZBTSZ08 -1.3715855 0.0113825 -120.499 < 2e-16 ***
ORIGIN_SZCBSZ01 -3.5940232 0.0548979 -65.467 < 2e-16 ***
ORIGIN_SZCCSZ01 -0.7008220 0.0140373 -49.926 < 2e-16 ***
ORIGIN_SZCHSZ01 -0.9109524 0.0122869 -74.140 < 2e-16 ***
ORIGIN_SZCHSZ02 -0.8566547 0.0088749 -96.526 < 2e-16 ***
ORIGIN_SZCHSZ03 1.1153731 0.0066136 168.650 < 2e-16 ***
ORIGIN_SZCKSZ01 0.3001815 0.0058548 51.271 < 2e-16 ***
ORIGIN_SZCKSZ02 0.7185711 0.0060595 118.585 < 2e-16 ***
ORIGIN_SZCKSZ03 1.1389824 0.0053179 214.178 < 2e-16 ***
ORIGIN_SZCKSZ04 1.6281772 0.0054761 297.324 < 2e-16 ***
ORIGIN_SZCKSZ05 0.8338470 0.0064178 129.927 < 2e-16 ***
ORIGIN_SZCKSZ06 0.6528993 0.0082375 79.259 < 2e-16 ***
ORIGIN_SZCLSZ01 -0.7174758 0.0082123 -87.366 < 2e-16 ***
ORIGIN_SZCLSZ02 -1.7513100 0.0139062 -125.938 < 2e-16 ***
ORIGIN_SZCLSZ03 -1.0362873 0.0085485 -121.224 < 2e-16 ***
ORIGIN_SZCLSZ04 0.6160017 0.0051276 120.136 < 2e-16 ***
ORIGIN_SZCLSZ05 -2.1005122 0.0150228 -139.821 < 2e-16 ***
ORIGIN_SZCLSZ06 0.7252108 0.0049447 146.665 < 2e-16 ***
ORIGIN_SZCLSZ07 -0.5343482 0.0062500 -85.496 < 2e-16 ***
ORIGIN_SZCLSZ08 -0.2153408 0.0067571 -31.869 < 2e-16 ***
ORIGIN_SZCLSZ09 -1.8019961 0.0169078 -106.578 < 2e-16 ***
ORIGIN_SZDTSZ02 -3.9057711 0.0834668 -46.794 < 2e-16 ***
ORIGIN_SZDTSZ03 -3.4152419 0.0738650 -46.236 < 2e-16 ***
ORIGIN_SZDTSZ13 -3.0183438 0.0315257 -95.742 < 2e-16 ***
ORIGIN_SZGLSZ01 -1.7812384 0.0099367 -179.258 < 2e-16 ***
ORIGIN_SZGLSZ02 -0.1074991 0.0054325 -19.788 < 2e-16 ***
ORIGIN_SZGLSZ03 -0.2461106 0.0057176 -43.045 < 2e-16 ***
ORIGIN_SZGLSZ04 0.8657186 0.0046413 186.524 < 2e-16 ***
ORIGIN_SZGLSZ05 0.5871393 0.0047939 122.477 < 2e-16 ***
ORIGIN_SZHGSZ01 0.3543819 0.0050461 70.229 < 2e-16 ***
ORIGIN_SZHGSZ02 0.4218178 0.0050820 83.003 < 2e-16 ***
ORIGIN_SZHGSZ03 0.2411309 0.0054241 44.456 < 2e-16 ***
ORIGIN_SZHGSZ04 0.8180622 0.0046153 177.252 < 2e-16 ***
ORIGIN_SZHGSZ05 1.2173687 0.0045655 266.647 < 2e-16 ***
ORIGIN_SZHGSZ06 -0.1826300 0.0058214 -31.372 < 2e-16 ***
ORIGIN_SZHGSZ07 0.3172839 0.0050733 62.540 < 2e-16 ***
ORIGIN_SZHGSZ08 -0.1151369 0.0057067 -20.176 < 2e-16 ***
ORIGIN_SZHGSZ09 -1.2873441 0.0091690 -140.401 < 2e-16 ***
ORIGIN_SZHGSZ10 -3.3783178 0.0424682 -79.549 < 2e-16 ***
ORIGIN_SZJESZ01 0.4859234 0.0055927 86.885 < 2e-16 ***
ORIGIN_SZJESZ02 0.1766088 0.0055800 31.650 < 2e-16 ***
ORIGIN_SZJESZ03 -0.2177441 0.0059535 -36.574 < 2e-16 ***
ORIGIN_SZJESZ04 -1.5532182 0.0104526 -148.597 < 2e-16 ***
ORIGIN_SZJESZ05 -2.3332926 0.0142701 -163.509 < 2e-16 ***
ORIGIN_SZJESZ06 0.3007382 0.0055019 54.661 < 2e-16 ***
ORIGIN_SZJESZ07 -1.9687994 0.0121092 -162.587 < 2e-16 ***
ORIGIN_SZJESZ08 -1.3032070 0.0122024 -106.800 < 2e-16 ***
ORIGIN_SZJESZ09 0.5762635 0.0058766 98.061 < 2e-16 ***
ORIGIN_SZJESZ10 -1.4423113 0.0194773 -74.051 < 2e-16 ***
ORIGIN_SZJESZ11 -1.9720897 0.0200811 -98.206 < 2e-16 ***
ORIGIN_SZJWSZ01 0.3808627 0.0071357 53.374 < 2e-16 ***
ORIGIN_SZJWSZ02 0.7963999 0.0053150 149.840 < 2e-16 ***
ORIGIN_SZJWSZ03 1.5429636 0.0049961 308.834 < 2e-16 ***
ORIGIN_SZJWSZ04 0.6410760 0.0056711 113.042 < 2e-16 ***
ORIGIN_SZJWSZ05 -2.1571049 0.0133584 -161.479 < 2e-16 ***
ORIGIN_SZJWSZ06 -1.5174532 0.0113384 -133.833 < 2e-16 ***
ORIGIN_SZJWSZ07 -2.7089963 0.0280439 -96.598 < 2e-16 ***
ORIGIN_SZJWSZ08 1.5343415 0.0051711 296.713 < 2e-16 ***
ORIGIN_SZJWSZ09 1.8837410 0.0048845 385.656 < 2e-16 ***
ORIGIN_SZKLSZ01 0.1081286 0.0053307 20.284 < 2e-16 ***
ORIGIN_SZKLSZ02 -0.8844695 0.0067728 -130.591 < 2e-16 ***
ORIGIN_SZKLSZ03 -0.6872640 0.0062857 -109.337 < 2e-16 ***
ORIGIN_SZKLSZ04 -2.2090319 0.0122440 -180.418 < 2e-16 ***
ORIGIN_SZKLSZ05 -1.1728726 0.0110765 -105.888 < 2e-16 ***
ORIGIN_SZKLSZ06 -6.1162315 0.1857789 -32.922 < 2e-16 ***
ORIGIN_SZKLSZ07 -1.4082749 0.0092299 -152.578 < 2e-16 ***
ORIGIN_SZKLSZ08 -1.7781551 0.0104682 -169.862 < 2e-16 ***
ORIGIN_SZLKSZ01 -2.0531568 0.0398803 -51.483 < 2e-16 ***
ORIGIN_SZMDSZ01 -0.8825639 0.0287621 -30.685 < 2e-16 ***
ORIGIN_SZMDSZ02 -0.6219993 0.0107388 -57.921 < 2e-16 ***
ORIGIN_SZMDSZ03 -2.0840156 0.0173117 -120.382 < 2e-16 ***
ORIGIN_SZMPSZ01 -0.9659093 0.0086972 -111.060 < 2e-16 ***
ORIGIN_SZMPSZ02 -1.0411153 0.0073403 -141.836 < 2e-16 ***
ORIGIN_SZMPSZ03 0.0001659 0.0059401 0.028 0.977719
ORIGIN_SZMUSZ02 -3.7599031 0.1037937 -36.225 < 2e-16 ***
ORIGIN_SZNTSZ01 -3.0388366 0.0355325 -85.523 < 2e-16 ***
ORIGIN_SZNTSZ02 -3.4230640 0.0235902 -145.106 < 2e-16 ***
ORIGIN_SZNTSZ03 -0.9094796 0.0082551 -110.172 < 2e-16 ***
ORIGIN_SZNTSZ05 -4.0861681 0.0499630 -81.784 < 2e-16 ***
ORIGIN_SZNTSZ06 -3.9497128 0.0565388 -69.858 < 2e-16 ***
ORIGIN_SZNVSZ01 0.3235636 0.0049439 65.447 < 2e-16 ***
ORIGIN_SZNVSZ02 -0.6946748 0.0070536 -98.485 < 2e-16 ***
ORIGIN_SZNVSZ03 -1.0540196 0.0083781 -125.806 < 2e-16 ***
ORIGIN_SZNVSZ04 -0.9897977 0.0093463 -105.903 < 2e-16 ***
ORIGIN_SZNVSZ05 -2.2578432 0.0169180 -133.458 < 2e-16 ***
ORIGIN_SZPGSZ01 0.2399827 0.0130436 18.398 < 2e-16 ***
ORIGIN_SZPGSZ02 -0.3352342 0.0078451 -42.732 < 2e-16 ***
ORIGIN_SZPGSZ03 0.9515148 0.0051376 185.207 < 2e-16 ***
ORIGIN_SZPGSZ04 1.3998952 0.0047991 291.697 < 2e-16 ***
ORIGIN_SZPGSZ05 0.4451629 0.0063423 70.189 < 2e-16 ***
ORIGIN_SZPLSZ01 -0.9705918 0.0122781 -79.050 < 2e-16 ***
ORIGIN_SZPLSZ02 -1.0670151 0.0153358 -69.577 < 2e-16 ***
ORIGIN_SZPLSZ03 -2.1229124 0.0373527 -56.834 < 2e-16 ***
ORIGIN_SZPLSZ04 -3.0911932 0.0371296 -83.254 < 2e-16 ***
ORIGIN_SZPLSZ05 -2.1705708 0.0226085 -96.007 < 2e-16 ***
ORIGIN_SZPNSZ01 0.9052637 0.0065952 137.262 < 2e-16 ***
ORIGIN_SZPNSZ02 -0.1720425 0.0125658 -13.691 < 2e-16 ***
ORIGIN_SZPNSZ03 -2.3973459 0.0201408 -119.029 < 2e-16 ***
ORIGIN_SZPNSZ04 -3.4483689 0.0343741 -100.319 < 2e-16 ***
ORIGIN_SZPNSZ05 -2.0588530 0.0282328 -72.924 < 2e-16 ***
ORIGIN_SZPRSZ01 -0.6399015 0.0120470 -53.117 < 2e-16 ***
ORIGIN_SZPRSZ02 0.8122270 0.0050886 159.617 < 2e-16 ***
ORIGIN_SZPRSZ03 0.3990960 0.0051810 77.031 < 2e-16 ***
ORIGIN_SZPRSZ04 -0.8485348 0.0079236 -107.089 < 2e-16 ***
ORIGIN_SZPRSZ05 0.8008791 0.0048532 165.021 < 2e-16 ***
ORIGIN_SZPRSZ06 -1.4498806 0.0121422 -119.408 < 2e-16 ***
ORIGIN_SZPRSZ07 -3.2025045 0.0167118 -191.631 < 2e-16 ***
ORIGIN_SZPRSZ08 -0.5862269 0.0067255 -87.165 < 2e-16 ***
ORIGIN_SZQTSZ01 -0.1859270 0.0075531 -24.616 < 2e-16 ***
ORIGIN_SZQTSZ02 -0.8715122 0.0068124 -127.929 < 2e-16 ***
ORIGIN_SZQTSZ03 -0.1259816 0.0064796 -19.443 < 2e-16 ***
ORIGIN_SZQTSZ04 -1.4620032 0.0079848 -183.098 < 2e-16 ***
ORIGIN_SZQTSZ05 -0.6675643 0.0069616 -95.892 < 2e-16 ***
ORIGIN_SZQTSZ06 -0.8190026 0.0072713 -112.634 < 2e-16 ***
ORIGIN_SZQTSZ07 -1.5189403 0.0099864 -152.101 < 2e-16 ***
ORIGIN_SZQTSZ08 -0.4976238 0.0067874 -73.316 < 2e-16 ***
ORIGIN_SZQTSZ09 -0.9006162 0.0075978 -118.536 < 2e-16 ***
ORIGIN_SZQTSZ10 -0.6690184 0.0071574 -93.473 < 2e-16 ***
ORIGIN_SZQTSZ11 -2.5203437 0.0147000 -171.452 < 2e-16 ***
ORIGIN_SZQTSZ12 -3.0461675 0.0190193 -160.162 < 2e-16 ***
ORIGIN_SZQTSZ13 -0.7501068 0.0084481 -88.791 < 2e-16 ***
ORIGIN_SZQTSZ14 -1.9321849 0.0126114 -153.209 < 2e-16 ***
ORIGIN_SZQTSZ15 -0.9576828 0.0127157 -75.315 < 2e-16 ***
ORIGIN_SZRCSZ01 -1.8167951 0.0129234 -140.582 < 2e-16 ***
ORIGIN_SZRCSZ06 -0.5560563 0.0090507 -61.438 < 2e-16 ***
ORIGIN_SZRVSZ01 -2.8862570 0.0325532 -88.663 < 2e-16 ***
ORIGIN_SZRVSZ02 -3.1555662 0.0281279 -112.186 < 2e-16 ***
ORIGIN_SZRVSZ03 -2.9836089 0.0248449 -120.089 < 2e-16 ***
ORIGIN_SZRVSZ04 -3.5520422 0.0561371 -63.274 < 2e-16 ***
ORIGIN_SZRVSZ05 -2.5866584 0.0180382 -143.399 < 2e-16 ***
ORIGIN_SZSBSZ01 0.2867444 0.0071098 40.331 < 2e-16 ***
ORIGIN_SZSBSZ02 -0.9012334 0.0087262 -103.278 < 2e-16 ***
ORIGIN_SZSBSZ03 0.8311038 0.0055422 149.958 < 2e-16 ***
ORIGIN_SZSBSZ04 0.4044170 0.0062047 65.179 < 2e-16 ***
ORIGIN_SZSBSZ05 -0.2661845 0.0074162 -35.892 < 2e-16 ***
ORIGIN_SZSBSZ06 -0.9023075 0.0175046 -51.547 < 2e-16 ***
ORIGIN_SZSBSZ07 0.0505870 0.0131317 3.852 0.000117 ***
ORIGIN_SZSBSZ08 -1.1158011 0.0145416 -76.732 < 2e-16 ***
ORIGIN_SZSBSZ09 -0.9682835 0.0095396 -101.501 < 2e-16 ***
ORIGIN_SZSESZ02 1.1452735 0.0047810 239.548 < 2e-16 ***
ORIGIN_SZSESZ03 1.2815277 0.0045677 280.564 < 2e-16 ***
ORIGIN_SZSESZ04 0.8085857 0.0052756 153.269 < 2e-16 ***
ORIGIN_SZSESZ05 -0.2329413 0.0063113 -36.909 < 2e-16 ***
ORIGIN_SZSESZ06 1.0576879 0.0049909 211.925 < 2e-16 ***
ORIGIN_SZSESZ07 -2.3165908 0.0196831 -117.695 < 2e-16 ***
ORIGIN_SZSGSZ01 -0.6606350 0.0088079 -75.005 < 2e-16 ***
ORIGIN_SZSGSZ02 -1.3638984 0.0104040 -131.094 < 2e-16 ***
ORIGIN_SZSGSZ03 0.1152591 0.0054649 21.091 < 2e-16 ***
ORIGIN_SZSGSZ04 0.2954067 0.0050865 58.077 < 2e-16 ***
ORIGIN_SZSGSZ05 -2.0792678 0.0109882 -189.227 < 2e-16 ***
ORIGIN_SZSGSZ06 0.4563227 0.0048880 93.356 < 2e-16 ***
ORIGIN_SZSGSZ07 -0.8955254 0.0067100 -133.461 < 2e-16 ***
ORIGIN_SZSKSZ01 -0.3184402 0.0093032 -34.229 < 2e-16 ***
ORIGIN_SZSKSZ02 1.1160484 0.0063851 174.790 < 2e-16 ***
ORIGIN_SZSKSZ03 -0.2566692 0.0086021 -29.838 < 2e-16 ***
ORIGIN_SZSKSZ04 -1.5781827 0.0279394 -56.486 < 2e-16 ***
ORIGIN_SZSKSZ05 -0.2724361 0.0163597 -16.653 < 2e-16 ***
ORIGIN_SZSLSZ01 -2.4458625 0.0330301 -74.050 < 2e-16 ***
ORIGIN_SZSLSZ04 -0.0987076 0.0079626 -12.396 < 2e-16 ***
ORIGIN_SZSRSZ01 -2.2584977 0.0176647 -127.854 < 2e-16 ***
ORIGIN_SZTHSZ01 -2.5878524 0.0489998 -52.814 < 2e-16 ***
ORIGIN_SZTHSZ03 -0.8101746 0.0226814 -35.720 < 2e-16 ***
ORIGIN_SZTHSZ04 -2.4186655 0.0288663 -83.789 < 2e-16 ***
ORIGIN_SZTHSZ06 -1.7080541 0.0186353 -91.657 < 2e-16 ***
ORIGIN_SZTMSZ01 -0.2193476 0.0061823 -35.480 < 2e-16 ***
ORIGIN_SZTMSZ02 1.7772464 0.0043394 409.558 < 2e-16 ***
ORIGIN_SZTMSZ03 1.0051343 0.0046055 218.249 < 2e-16 ***
ORIGIN_SZTMSZ04 0.1642370 0.0055078 29.819 < 2e-16 ***
ORIGIN_SZTMSZ05 -1.2878706 0.0114828 -112.157 < 2e-16 ***
ORIGIN_SZTNSZ01 -1.7163504 0.0131268 -130.751 < 2e-16 ***
ORIGIN_SZTNSZ02 -1.6508988 0.0103851 -158.968 < 2e-16 ***
ORIGIN_SZTNSZ03 -2.1545577 0.0137947 -156.187 < 2e-16 ***
ORIGIN_SZTNSZ04 -0.3949120 0.0078496 -50.310 < 2e-16 ***
ORIGIN_SZTPSZ01 -0.8058100 0.0069916 -115.253 < 2e-16 ***
ORIGIN_SZTPSZ02 0.5369060 0.0047272 113.577 < 2e-16 ***
ORIGIN_SZTPSZ03 -0.7779333 0.0064278 -121.027 < 2e-16 ***
ORIGIN_SZTPSZ04 -0.8153581 0.0061387 -132.823 < 2e-16 ***
ORIGIN_SZTPSZ05 -0.5073676 0.0067771 -74.865 < 2e-16 ***
ORIGIN_SZTPSZ06 0.0847301 0.0065717 12.893 < 2e-16 ***
ORIGIN_SZTPSZ07 -0.5839519 0.0066148 -88.280 < 2e-16 ***
ORIGIN_SZTPSZ08 -1.0577941 0.0098480 -107.412 < 2e-16 ***
ORIGIN_SZTPSZ09 -0.9067707 0.0071367 -127.057 < 2e-16 ***
ORIGIN_SZTPSZ10 -1.1362091 0.0080905 -140.438 < 2e-16 ***
ORIGIN_SZTPSZ11 -0.2374621 0.0059472 -39.928 < 2e-16 ***
ORIGIN_SZTPSZ12 -0.8028874 0.0069663 -115.253 < 2e-16 ***
ORIGIN_SZTSSZ01 -2.7809271 0.0482843 -57.595 < 2e-16 ***
ORIGIN_SZTSSZ02 0.0425804 0.0105088 4.052 5.08e-05 ***
ORIGIN_SZTSSZ03 0.1142369 0.0109412 10.441 < 2e-16 ***
ORIGIN_SZTSSZ04 -0.6186261 0.0116324 -53.181 < 2e-16 ***
ORIGIN_SZTSSZ05 -1.0846732 0.0173555 -62.497 < 2e-16 ***
ORIGIN_SZTSSZ06 0.3980173 0.0198100 20.092 < 2e-16 ***
ORIGIN_SZWCSZ01 1.3545143 0.0092002 147.227 < 2e-16 ***
ORIGIN_SZWCSZ02 -2.9863278 0.0330906 -90.247 < 2e-16 ***
ORIGIN_SZWCSZ03 -5.0504916 0.1241385 -40.684 < 2e-16 ***
ORIGIN_SZWDSZ01 1.5238429 0.0049404 308.448 < 2e-16 ***
ORIGIN_SZWDSZ02 0.2832576 0.0056218 50.386 < 2e-16 ***
ORIGIN_SZWDSZ03 1.3702524 0.0053266 257.245 < 2e-16 ***
ORIGIN_SZWDSZ04 1.0248225 0.0059272 172.903 < 2e-16 ***
ORIGIN_SZWDSZ05 0.2356778 0.0060587 38.899 < 2e-16 ***
ORIGIN_SZWDSZ06 0.3146925 0.0059919 52.520 < 2e-16 ***
ORIGIN_SZWDSZ07 -1.4971897 0.0091243 -164.088 < 2e-16 ***
ORIGIN_SZWDSZ08 -0.8894079 0.0087414 -101.747 < 2e-16 ***
ORIGIN_SZWDSZ09 1.4437633 0.0053160 271.590 < 2e-16 ***
ORIGIN_SZYSSZ01 -0.2519398 0.0064443 -39.095 < 2e-16 ***
ORIGIN_SZYSSZ02 0.8726785 0.0057658 151.354 < 2e-16 ***
ORIGIN_SZYSSZ03 1.7868139 0.0050674 352.611 < 2e-16 ***
ORIGIN_SZYSSZ04 0.8418040 0.0051738 162.704 < 2e-16 ***
ORIGIN_SZYSSZ05 0.4292096 0.0062520 68.652 < 2e-16 ***
ORIGIN_SZYSSZ06 -0.7459961 0.0119123 -62.624 < 2e-16 ***
ORIGIN_SZYSSZ07 -0.8422281 0.0144559 -58.262 < 2e-16 ***
ORIGIN_SZYSSZ08 0.1829428 0.0067885 26.949 < 2e-16 ***
ORIGIN_SZYSSZ09 1.1159712 0.0050760 219.853 < 2e-16 ***
DESTIN_SZAMSZ02 0.0694567 0.0045966 15.111 < 2e-16 ***
DESTIN_SZAMSZ03 0.0760100 0.0044639 17.028 < 2e-16 ***
DESTIN_SZAMSZ04 -1.1306391 0.0064373 -175.639 < 2e-16 ***
DESTIN_SZAMSZ05 -1.0751133 0.0065164 -164.985 < 2e-16 ***
DESTIN_SZAMSZ06 -0.9624298 0.0065937 -145.962 < 2e-16 ***
DESTIN_SZAMSZ07 -1.5060319 0.0097616 -154.281 < 2e-16 ***
DESTIN_SZAMSZ08 -0.4813202 0.0069794 -68.963 < 2e-16 ***
DESTIN_SZAMSZ09 -1.0220675 0.0066313 -154.129 < 2e-16 ***
DESTIN_SZAMSZ10 0.1235142 0.0047044 26.255 < 2e-16 ***
DESTIN_SZAMSZ11 -0.8917993 0.0088519 -100.746 < 2e-16 ***
DESTIN_SZAMSZ12 0.0195208 0.0051704 3.775 0.000160 ***
DESTIN_SZBDSZ01 0.9736349 0.0042757 227.713 < 2e-16 ***
DESTIN_SZBDSZ02 -0.1969470 0.0055284 -35.625 < 2e-16 ***
DESTIN_SZBDSZ03 0.1266471 0.0050786 24.938 < 2e-16 ***
DESTIN_SZBDSZ04 1.1608485 0.0041956 276.684 < 2e-16 ***
DESTIN_SZBDSZ05 0.9293840 0.0044412 209.265 < 2e-16 ***
DESTIN_SZBDSZ06 0.4090567 0.0050300 81.323 < 2e-16 ***
DESTIN_SZBDSZ07 -0.8171478 0.0098945 -82.586 < 2e-16 ***
DESTIN_SZBDSZ08 -1.5895287 0.0111632 -142.391 < 2e-16 ***
DESTIN_SZBKSZ01 -1.3793311 0.0072145 -191.189 < 2e-16 ***
DESTIN_SZBKSZ02 -0.5253670 0.0061879 -84.903 < 2e-16 ***
DESTIN_SZBKSZ03 -1.0095362 0.0065426 -154.301 < 2e-16 ***
DESTIN_SZBKSZ04 -0.5662858 0.0056453 -100.311 < 2e-16 ***
DESTIN_SZBKSZ05 -0.9406607 0.0070597 -133.244 < 2e-16 ***
DESTIN_SZBKSZ06 -1.3129276 0.0067414 -194.755 < 2e-16 ***
DESTIN_SZBKSZ07 0.0120605 0.0049284 2.447 0.014400 *
DESTIN_SZBKSZ08 -1.3658471 0.0075109 -181.849 < 2e-16 ***
DESTIN_SZBKSZ09 -0.1771310 0.0055645 -31.832 < 2e-16 ***
DESTIN_SZBLSZ01 -0.8175223 0.0075645 -108.074 < 2e-16 ***
DESTIN_SZBLSZ02 0.1631280 0.0071753 22.735 < 2e-16 ***
DESTIN_SZBLSZ03 1.2598494 0.0081706 154.194 < 2e-16 ***
DESTIN_SZBLSZ04 -0.5642975 0.0137827 -40.943 < 2e-16 ***
DESTIN_SZBMSZ01 0.6921844 0.0054211 127.684 < 2e-16 ***
DESTIN_SZBMSZ02 -0.1209392 0.0055362 -21.845 < 2e-16 ***
DESTIN_SZBMSZ03 -0.2373881 0.0062427 -38.027 < 2e-16 ***
DESTIN_SZBMSZ04 -0.0407117 0.0058001 -7.019 2.23e-12 ***
DESTIN_SZBMSZ05 -0.2363309 0.0075967 -31.110 < 2e-16 ***
DESTIN_SZBMSZ06 -1.1930710 0.0134761 -88.532 < 2e-16 ***
DESTIN_SZBMSZ07 0.4625103 0.0051864 89.178 < 2e-16 ***
DESTIN_SZBMSZ08 -0.8604731 0.0069899 -123.102 < 2e-16 ***
DESTIN_SZBMSZ09 -2.1290239 0.0154841 -137.498 < 2e-16 ***
DESTIN_SZBMSZ10 -1.4617153 0.0094014 -155.478 < 2e-16 ***
DESTIN_SZBMSZ11 -1.3234050 0.0085506 -154.773 < 2e-16 ***
DESTIN_SZBMSZ12 -0.8399230 0.0085361 -98.397 < 2e-16 ***
DESTIN_SZBMSZ13 0.1366529 0.0059697 22.891 < 2e-16 ***
DESTIN_SZBMSZ14 -1.0491968 0.0083021 -126.378 < 2e-16 ***
DESTIN_SZBMSZ15 -0.6726684 0.0076276 -88.189 < 2e-16 ***
DESTIN_SZBMSZ16 -1.4011734 0.0116569 -120.201 < 2e-16 ***
DESTIN_SZBMSZ17 -1.5682752 0.0167333 -93.722 < 2e-16 ***
DESTIN_SZBPSZ01 -1.1120017 0.0063197 -175.959 < 2e-16 ***
DESTIN_SZBPSZ02 -2.0833466 0.0091139 -228.590 < 2e-16 ***
DESTIN_SZBPSZ03 -1.6937265 0.0087437 -193.709 < 2e-16 ***
DESTIN_SZBPSZ04 -0.7964999 0.0066129 -120.447 < 2e-16 ***
DESTIN_SZBPSZ05 0.2109118 0.0048815 43.206 < 2e-16 ***
DESTIN_SZBPSZ06 -1.1808365 0.0083657 -141.152 < 2e-16 ***
DESTIN_SZBPSZ07 -0.2077428 0.0084543 -24.572 < 2e-16 ***
DESTIN_SZBSSZ01 0.3164175 0.0050682 62.431 < 2e-16 ***
DESTIN_SZBSSZ02 -0.4852688 0.0057001 -85.134 < 2e-16 ***
DESTIN_SZBSSZ03 0.4130432 0.0043061 95.921 < 2e-16 ***
DESTIN_SZBTSZ01 0.6215095 0.0048914 127.061 < 2e-16 ***
DESTIN_SZBTSZ02 -0.0145076 0.0071799 -2.021 0.043324 *
DESTIN_SZBTSZ03 0.4919981 0.0058498 84.105 < 2e-16 ***
DESTIN_SZBTSZ04 -0.6957555 0.0114078 -60.989 < 2e-16 ***
DESTIN_SZBTSZ05 0.3329814 0.0073568 45.262 < 2e-16 ***
DESTIN_SZBTSZ06 -0.1333295 0.0073965 -18.026 < 2e-16 ***
DESTIN_SZBTSZ07 -1.4449581 0.0113186 -127.663 < 2e-16 ***
DESTIN_SZBTSZ08 -0.7079056 0.0103797 -68.201 < 2e-16 ***
DESTIN_SZCBSZ01 -5.7344725 0.3162767 -18.131 < 2e-16 ***
DESTIN_SZCCSZ01 -0.0009541 0.0083381 -0.114 0.908900
DESTIN_SZCHSZ01 -0.2083016 0.0099054 -21.029 < 2e-16 ***
DESTIN_SZCHSZ02 0.5369606 0.0057531 93.334 < 2e-16 ***
DESTIN_SZCHSZ03 2.5530638 0.0043945 580.971 < 2e-16 ***
DESTIN_SZCKSZ01 -0.5725975 0.0056507 -101.333 < 2e-16 ***
DESTIN_SZCKSZ02 -1.1181852 0.0063287 -176.685 < 2e-16 ***
DESTIN_SZCKSZ03 0.1156680 0.0049440 23.396 < 2e-16 ***
DESTIN_SZCKSZ04 -0.8647725 0.0071003 -121.794 < 2e-16 ***
DESTIN_SZCKSZ05 -1.1641791 0.0076248 -152.684 < 2e-16 ***
DESTIN_SZCKSZ06 -0.4397612 0.0073040 -60.208 < 2e-16 ***
DESTIN_SZCLSZ01 0.1930552 0.0053752 35.916 < 2e-16 ***
DESTIN_SZCLSZ02 -2.0436501 0.0136039 -150.225 < 2e-16 ***
DESTIN_SZCLSZ03 -0.9338571 0.0082908 -112.638 < 2e-16 ***
DESTIN_SZCLSZ04 0.0532041 0.0053276 9.987 < 2e-16 ***
DESTIN_SZCLSZ05 -1.0782781 0.0088184 -122.276 < 2e-16 ***
DESTIN_SZCLSZ06 0.4068171 0.0049068 82.910 < 2e-16 ***
DESTIN_SZCLSZ07 -0.3579507 0.0060289 -59.373 < 2e-16 ***
DESTIN_SZCLSZ08 -0.2487993 0.0066588 -37.364 < 2e-16 ***
DESTIN_SZCLSZ09 0.1611080 0.0071178 22.635 < 2e-16 ***
DESTIN_SZDTSZ02 -1.7308348 0.0349466 -49.528 < 2e-16 ***
DESTIN_SZDTSZ03 -0.5994253 0.0146230 -40.992 < 2e-16 ***
DESTIN_SZDTSZ13 -1.3685031 0.0162803 -84.059 < 2e-16 ***
DESTIN_SZGLSZ01 -0.0910001 0.0055275 -16.463 < 2e-16 ***
DESTIN_SZGLSZ02 -0.0692224 0.0052840 -13.100 < 2e-16 ***
DESTIN_SZGLSZ03 0.6493421 0.0043446 149.459 < 2e-16 ***
DESTIN_SZGLSZ04 0.9327947 0.0043674 213.583 < 2e-16 ***
DESTIN_SZGLSZ05 0.8161728 0.0043625 187.087 < 2e-16 ***
DESTIN_SZHGSZ01 0.0658625 0.0042516 15.491 < 2e-16 ***
DESTIN_SZHGSZ02 -0.8134329 0.0056721 -143.409 < 2e-16 ***
DESTIN_SZHGSZ03 -1.3546132 0.0066257 -204.448 < 2e-16 ***
DESTIN_SZHGSZ04 -0.4500588 0.0048448 -92.895 < 2e-16 ***
DESTIN_SZHGSZ05 -0.5026431 0.0050996 -98.566 < 2e-16 ***
DESTIN_SZHGSZ06 -0.8673686 0.0059530 -145.704 < 2e-16 ***
DESTIN_SZHGSZ07 0.0560490 0.0047702 11.750 < 2e-16 ***
DESTIN_SZHGSZ08 -0.0443189 0.0052599 -8.426 < 2e-16 ***
DESTIN_SZHGSZ09 -0.0126355 0.0054966 -2.299 0.021518 *
DESTIN_SZHGSZ10 -3.5821793 0.0263281 -136.059 < 2e-16 ***
DESTIN_SZJESZ01 -0.3704281 0.0056684 -65.350 < 2e-16 ***
DESTIN_SZJESZ02 -0.7369159 0.0058686 -125.570 < 2e-16 ***
DESTIN_SZJESZ03 -0.8985484 0.0063627 -141.222 < 2e-16 ***
DESTIN_SZJESZ04 -1.0511995 0.0073996 -142.061 < 2e-16 ***
DESTIN_SZJESZ05 -1.5324974 0.0102612 -149.349 < 2e-16 ***
DESTIN_SZJESZ06 0.3105267 0.0048241 64.370 < 2e-16 ***
DESTIN_SZJESZ07 -1.3234483 0.0085497 -154.795 < 2e-16 ***
DESTIN_SZJESZ08 -0.6559742 0.0083174 -78.867 < 2e-16 ***
DESTIN_SZJESZ09 0.2663752 0.0063370 42.035 < 2e-16 ***
DESTIN_SZJESZ10 0.8529026 0.0076067 112.126 < 2e-16 ***
DESTIN_SZJESZ11 0.5559641 0.0074629 74.497 < 2e-16 ***
DESTIN_SZJWSZ01 -0.9790971 0.0071830 -136.308 < 2e-16 ***
DESTIN_SZJWSZ02 -0.8746590 0.0060179 -145.342 < 2e-16 ***
DESTIN_SZJWSZ03 0.5689062 0.0049105 115.855 < 2e-16 ***
DESTIN_SZJWSZ04 0.4520963 0.0050302 89.876 < 2e-16 ***
DESTIN_SZJWSZ05 -1.0249671 0.0067371 -152.137 < 2e-16 ***
DESTIN_SZJWSZ06 -0.7451483 0.0062189 -119.819 < 2e-16 ***
DESTIN_SZJWSZ07 -2.8453099 0.0287335 -99.024 < 2e-16 ***
DESTIN_SZJWSZ08 -0.3372309 0.0058003 -58.141 < 2e-16 ***
DESTIN_SZJWSZ09 1.0505330 0.0045908 228.832 < 2e-16 ***
DESTIN_SZKLSZ01 -0.2334836 0.0057970 -40.277 < 2e-16 ***
DESTIN_SZKLSZ02 -0.5416148 0.0061432 -88.164 < 2e-16 ***
DESTIN_SZKLSZ03 -0.8026495 0.0068745 -116.757 < 2e-16 ***
DESTIN_SZKLSZ04 -1.2918594 0.0090197 -143.227 < 2e-16 ***
DESTIN_SZKLSZ05 -0.4069101 0.0087812 -46.339 < 2e-16 ***
DESTIN_SZKLSZ06 -2.5333101 0.0363215 -69.747 < 2e-16 ***
DESTIN_SZKLSZ07 -0.6623343 0.0070761 -93.601 < 2e-16 ***
DESTIN_SZKLSZ08 -0.1408205 0.0054965 -25.620 < 2e-16 ***
DESTIN_SZLKSZ01 -1.2639235 0.0208254 -60.691 < 2e-16 ***
DESTIN_SZMDSZ01 -1.5655800 0.0202787 -77.203 < 2e-16 ***
DESTIN_SZMDSZ02 -0.9767682 0.0114687 -85.168 < 2e-16 ***
DESTIN_SZMDSZ03 -3.3328109 0.0254294 -131.061 < 2e-16 ***
DESTIN_SZMPSZ01 -0.4552859 0.0080666 -56.441 < 2e-16 ***
DESTIN_SZMPSZ02 -0.5386560 0.0064620 -83.358 < 2e-16 ***
DESTIN_SZMPSZ03 0.4952000 0.0052295 94.694 < 2e-16 ***
DESTIN_SZMUSZ02 -1.4434175 0.0202509 -71.277 < 2e-16 ***
DESTIN_SZNTSZ01 -2.9194067 0.0449654 -64.926 < 2e-16 ***
DESTIN_SZNTSZ02 -1.3780179 0.0112867 -122.092 < 2e-16 ***
DESTIN_SZNTSZ03 -0.5044699 0.0080449 -62.707 < 2e-16 ***
DESTIN_SZNTSZ05 -2.0017134 0.0258750 -77.361 < 2e-16 ***
DESTIN_SZNTSZ06 -3.8120537 0.0434271 -87.781 < 2e-16 ***
DESTIN_SZNVSZ01 -0.1071506 0.0051026 -20.999 < 2e-16 ***
DESTIN_SZNVSZ02 -0.0274710 0.0057611 -4.768 1.86e-06 ***
DESTIN_SZNVSZ03 0.1076352 0.0057909 18.587 < 2e-16 ***
DESTIN_SZNVSZ04 -1.2087250 0.0110438 -109.448 < 2e-16 ***
DESTIN_SZNVSZ05 -1.0058290 0.0092167 -109.131 < 2e-16 ***
DESTIN_SZPGSZ01 -1.2029931 0.0163170 -73.726 < 2e-16 ***
DESTIN_SZPGSZ02 -1.2878671 0.0074139 -173.709 < 2e-16 ***
DESTIN_SZPGSZ03 -0.1520894 0.0048629 -31.275 < 2e-16 ***
DESTIN_SZPGSZ04 -0.1985959 0.0050374 -39.424 < 2e-16 ***
DESTIN_SZPGSZ05 -1.5290983 0.0082617 -185.083 < 2e-16 ***
DESTIN_SZPLSZ01 -0.3567934 0.0074298 -48.022 < 2e-16 ***
DESTIN_SZPLSZ02 -1.7114351 0.0134462 -127.280 < 2e-16 ***
DESTIN_SZPLSZ03 -0.3241427 0.0098895 -32.776 < 2e-16 ***
DESTIN_SZPLSZ04 -1.7117196 0.0119003 -143.838 < 2e-16 ***
DESTIN_SZPLSZ05 -0.5086379 0.0120051 -42.368 < 2e-16 ***
DESTIN_SZPNSZ01 0.2026781 0.0068977 29.383 < 2e-16 ***
DESTIN_SZPNSZ02 0.8313754 0.0078544 105.848 < 2e-16 ***
DESTIN_SZPNSZ03 -0.4041254 0.0086586 -46.673 < 2e-16 ***
DESTIN_SZPNSZ04 1.5814539 0.0093641 168.885 < 2e-16 ***
DESTIN_SZPNSZ05 1.1823430 0.0129843 91.059 < 2e-16 ***
DESTIN_SZPRSZ01 -1.1057553 0.0088197 -125.374 < 2e-16 ***
DESTIN_SZPRSZ02 0.0895099 0.0056308 15.897 < 2e-16 ***
DESTIN_SZPRSZ03 0.6921925 0.0043977 157.397 < 2e-16 ***
DESTIN_SZPRSZ04 -0.2848336 0.0084725 -33.619 < 2e-16 ***
DESTIN_SZPRSZ05 0.1744480 0.0053553 32.575 < 2e-16 ***
DESTIN_SZPRSZ06 0.4279206 0.0058735 72.856 < 2e-16 ***
DESTIN_SZPRSZ07 -1.5123108 0.0124303 -121.664 < 2e-16 ***
DESTIN_SZPRSZ08 -0.5650226 0.0068530 -82.449 < 2e-16 ***
DESTIN_SZQTSZ01 -0.5952360 0.0090505 -65.769 < 2e-16 ***
DESTIN_SZQTSZ02 -0.7728170 0.0078910 -97.937 < 2e-16 ***
DESTIN_SZQTSZ03 -0.5066812 0.0073996 -68.474 < 2e-16 ***
DESTIN_SZQTSZ04 -0.6398414 0.0075411 -84.847 < 2e-16 ***
DESTIN_SZQTSZ05 -0.4354527 0.0069345 -62.795 < 2e-16 ***
DESTIN_SZQTSZ06 -0.6597391 0.0071919 -91.733 < 2e-16 ***
DESTIN_SZQTSZ07 -0.9392696 0.0112518 -83.477 < 2e-16 ***
DESTIN_SZQTSZ08 0.4617774 0.0057011 80.998 < 2e-16 ***
DESTIN_SZQTSZ09 -0.3174497 0.0065890 -48.178 < 2e-16 ***
DESTIN_SZQTSZ10 0.1993449 0.0059923 33.267 < 2e-16 ***
DESTIN_SZQTSZ11 0.2551535 0.0061885 41.230 < 2e-16 ***
DESTIN_SZQTSZ12 -0.1662603 0.0086701 -19.176 < 2e-16 ***
DESTIN_SZQTSZ13 0.5500978 0.0063091 87.192 < 2e-16 ***
DESTIN_SZQTSZ14 0.5364435 0.0070157 76.463 < 2e-16 ***
DESTIN_SZQTSZ15 1.3611043 0.0081643 166.715 < 2e-16 ***
DESTIN_SZRCSZ01 -0.1034049 0.0076769 -13.470 < 2e-16 ***
DESTIN_SZRCSZ06 -1.0633902 0.0189846 -56.013 < 2e-16 ***
DESTIN_SZRVSZ01 -1.5486221 0.0165272 -93.701 < 2e-16 ***
DESTIN_SZRVSZ02 -2.4092611 0.0326906 -73.699 < 2e-16 ***
DESTIN_SZRVSZ03 -1.5172079 0.0139258 -108.950 < 2e-16 ***
DESTIN_SZRVSZ04 -1.1663615 0.0157430 -74.088 < 2e-16 ***
DESTIN_SZRVSZ05 -2.2404292 0.0281339 -79.634 < 2e-16 ***
DESTIN_SZSBSZ01 -1.3783780 0.0096022 -143.549 < 2e-16 ***
DESTIN_SZSBSZ02 -1.4445213 0.0081630 -176.959 < 2e-16 ***
DESTIN_SZSBSZ03 0.5149906 0.0051663 99.683 < 2e-16 ***
DESTIN_SZSBSZ04 0.2389086 0.0060765 39.317 < 2e-16 ***
DESTIN_SZSBSZ05 -1.2737442 0.0082818 -153.801 < 2e-16 ***
DESTIN_SZSBSZ06 -1.8683520 0.0227277 -82.206 < 2e-16 ***
DESTIN_SZSBSZ07 -0.5993154 0.0184895 -32.414 < 2e-16 ***
DESTIN_SZSBSZ08 0.8156302 0.0059840 136.302 < 2e-16 ***
DESTIN_SZSBSZ09 0.0900611 0.0057054 15.785 < 2e-16 ***
DESTIN_SZSESZ02 -0.6397704 0.0052491 -121.882 < 2e-16 ***
DESTIN_SZSESZ03 0.1714103 0.0042357 40.468 < 2e-16 ***
DESTIN_SZSESZ04 -1.0596175 0.0059865 -177.002 < 2e-16 ***
DESTIN_SZSESZ05 -0.8071891 0.0051229 -157.566 < 2e-16 ***
DESTIN_SZSESZ06 -0.5580934 0.0066216 -84.284 < 2e-16 ***
DESTIN_SZSESZ07 -3.1448863 0.0227788 -138.062 < 2e-16 ***
DESTIN_SZSGSZ01 -0.1795225 0.0060127 -29.857 < 2e-16 ***
DESTIN_SZSGSZ02 -0.2986570 0.0053561 -55.760 < 2e-16 ***
DESTIN_SZSGSZ03 -0.4074671 0.0050609 -80.513 < 2e-16 ***
DESTIN_SZSGSZ04 -0.1505164 0.0050931 -29.553 < 2e-16 ***
DESTIN_SZSGSZ05 -1.9908372 0.0101448 -196.242 < 2e-16 ***
DESTIN_SZSGSZ06 0.6715268 0.0041161 163.148 < 2e-16 ***
DESTIN_SZSGSZ07 -0.4494757 0.0055319 -81.252 < 2e-16 ***
DESTIN_SZSISZ01 -0.5517983 0.0261860 -21.072 < 2e-16 ***
DESTIN_SZSKSZ01 -0.4749154 0.0079257 -59.921 < 2e-16 ***
DESTIN_SZSKSZ02 0.9400302 0.0057218 164.290 < 2e-16 ***
DESTIN_SZSKSZ03 -0.2800377 0.0066081 -42.378 < 2e-16 ***
DESTIN_SZSKSZ04 -1.2570212 0.0145351 -86.482 < 2e-16 ***
DESTIN_SZSKSZ05 -0.2600474 0.0112800 -23.054 < 2e-16 ***
DESTIN_SZSLSZ01 -0.7775604 0.0085818 -90.606 < 2e-16 ***
DESTIN_SZSLSZ04 -0.8586515 0.0073142 -117.396 < 2e-16 ***
DESTIN_SZSRSZ01 -1.1370887 0.0142148 -79.993 < 2e-16 ***
DESTIN_SZTHSZ01 -4.3259988 0.0368554 -117.378 < 2e-16 ***
DESTIN_SZTHSZ03 -2.6632914 0.0252720 -105.385 < 2e-16 ***
DESTIN_SZTHSZ04 -3.1000906 0.0216372 -143.276 < 2e-16 ***
DESTIN_SZTHSZ06 -2.5952642 0.0156340 -166.001 < 2e-16 ***
DESTIN_SZTMSZ01 -0.2092828 0.0059257 -35.318 < 2e-16 ***
DESTIN_SZTMSZ02 1.8238139 0.0039155 465.798 < 2e-16 ***
DESTIN_SZTMSZ03 0.8518259 0.0043636 195.210 < 2e-16 ***
DESTIN_SZTMSZ04 1.0222812 0.0043466 235.191 < 2e-16 ***
DESTIN_SZTMSZ05 0.6323777 0.0060058 105.294 < 2e-16 ***
DESTIN_SZTNSZ01 -0.3336078 0.0074388 -44.847 < 2e-16 ***
DESTIN_SZTNSZ02 -1.0820469 0.0101689 -106.408 < 2e-16 ***
DESTIN_SZTNSZ03 -1.4186505 0.0119906 -118.313 < 2e-16 ***
DESTIN_SZTNSZ04 -0.3058199 0.0074743 -40.916 < 2e-16 ***
DESTIN_SZTPSZ01 -0.4872299 0.0061571 -79.133 < 2e-16 ***
DESTIN_SZTPSZ02 0.7158441 0.0041312 173.278 < 2e-16 ***
DESTIN_SZTPSZ03 -0.4314229 0.0059917 -72.004 < 2e-16 ***
DESTIN_SZTPSZ04 -1.5898245 0.0076083 -208.959 < 2e-16 ***
DESTIN_SZTPSZ05 -1.0445550 0.0062363 -167.497 < 2e-16 ***
DESTIN_SZTPSZ06 -0.4319582 0.0070100 -61.621 < 2e-16 ***
DESTIN_SZTPSZ07 -2.1602303 0.0120352 -179.493 < 2e-16 ***
DESTIN_SZTPSZ08 -1.1920493 0.0093083 -128.063 < 2e-16 ***
DESTIN_SZTPSZ09 -0.2022481 0.0071137 -28.431 < 2e-16 ***
DESTIN_SZTPSZ10 -1.2464793 0.0090124 -138.308 < 2e-16 ***
DESTIN_SZTPSZ11 -0.0808445 0.0056019 -14.432 < 2e-16 ***
DESTIN_SZTPSZ12 -0.6784376 0.0066340 -102.267 < 2e-16 ***
DESTIN_SZTSSZ01 -1.5845062 0.0222086 -71.346 < 2e-16 ***
DESTIN_SZTSSZ02 -0.1886010 0.0146338 -12.888 < 2e-16 ***
DESTIN_SZTSSZ03 0.6525526 0.0092450 70.585 < 2e-16 ***
DESTIN_SZTSSZ04 0.5285464 0.0100182 52.759 < 2e-16 ***
DESTIN_SZTSSZ05 1.4670106 0.0104357 140.577 < 2e-16 ***
DESTIN_SZTSSZ06 2.5043588 0.0167444 149.564 < 2e-16 ***
DESTIN_SZWCSZ01 1.9787931 0.0054306 364.375 < 2e-16 ***
DESTIN_SZWCSZ02 -2.2593108 0.0127916 -176.624 < 2e-16 ***
DESTIN_SZWCSZ03 -3.1897655 0.0326927 -97.568 < 2e-16 ***
DESTIN_SZWDSZ01 1.0476108 0.0044629 234.738 < 2e-16 ***
DESTIN_SZWDSZ02 -1.3176990 0.0065894 -199.973 < 2e-16 ***
DESTIN_SZWDSZ03 0.3432057 0.0052496 65.377 < 2e-16 ***
DESTIN_SZWDSZ04 -0.7895927 0.0073392 -107.586 < 2e-16 ***
DESTIN_SZWDSZ05 -0.8751665 0.0072946 -119.975 < 2e-16 ***
DESTIN_SZWDSZ06 -0.2106221 0.0053027 -39.720 < 2e-16 ***
DESTIN_SZWDSZ07 -1.6050834 0.0071754 -223.692 < 2e-16 ***
DESTIN_SZWDSZ08 -0.5124717 0.0069223 -74.032 < 2e-16 ***
DESTIN_SZWDSZ09 0.3813542 0.0054697 69.721 < 2e-16 ***
DESTIN_SZYSSZ01 0.0853753 0.0046572 18.332 < 2e-16 ***
DESTIN_SZYSSZ02 -0.3227172 0.0057351 -56.271 < 2e-16 ***
DESTIN_SZYSSZ03 -0.4151283 0.0066299 -62.615 < 2e-16 ***
DESTIN_SZYSSZ04 -0.4637327 0.0058206 -79.671 < 2e-16 ***
DESTIN_SZYSSZ05 -1.5888242 0.0111001 -143.136 < 2e-16 ***
DESTIN_SZYSSZ06 -1.4606209 0.0107759 -135.545 < 2e-16 ***
DESTIN_SZYSSZ07 -0.7839065 0.0144357 -54.304 < 2e-16 ***
DESTIN_SZYSSZ08 0.6265412 0.0045504 137.691 < 2e-16 ***
DESTIN_SZYSSZ09 0.1520067 0.0048092 31.607 < 2e-16 ***
log(DIST) -1.8468315 0.0004608 -4008.033 < 2e-16 ***
---
Signif. codes: 0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
(Dispersion parameter for poisson family taken to be 1)
Null deviance: 47094011 on 14470 degrees of freedom
Residual deviance: 10420261 on 13912 degrees of freedom
AIC: 10510518
Number of Fisher Scoring iterations: 7performance_rmse(dbcSIM_Poisson,
normalized = FALSE) [1] 1906.694model_list <- list(
originConstrained = orcSIM_Poisson,
doublyConstrained = dbcSIM_Poisson
)compare_performance(model_list,
metrics = "RMSE") # smaller RMSE, the better the model is.# Comparison of Model Performance Indices
Name | Model | RMSE
------------------------------------
originConstrained | glm | 2613.236
doublyConstrained | glm | 1906.694
